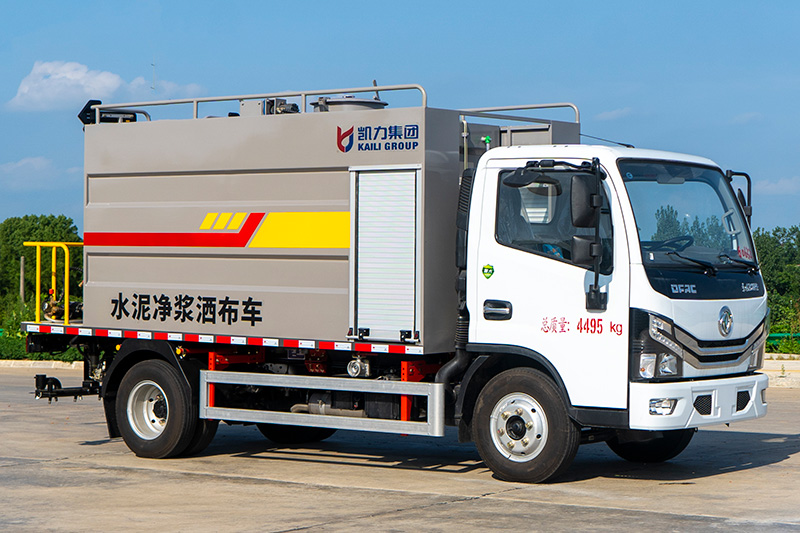

Dongfeng Xiaoduolika Cement Slurry Sprayer

High-pressure cleaning pump

Black Cat Cleaning Pump

Spraying pump

KLF-SLJJ-05

High-pressure cleaning pump motor

KLF-RMR-50

Spray pump motor

KLF-325

Cement mixing tank

KLF-SLJJ-01

hydraulic pump

KLF2-32-40

Motor for cement mixing tank

KLF-RMR-80

hydraulic valve

KLF-L15

hydraulic oil tank

30L

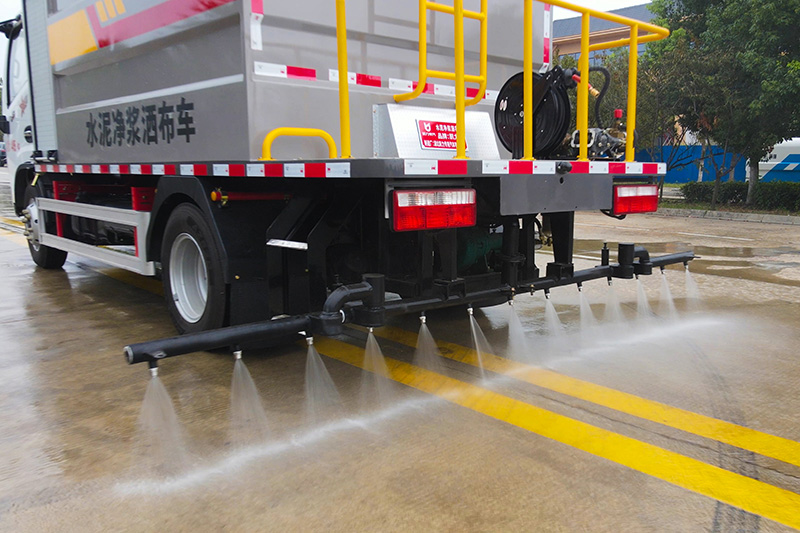

Cement slurry spreading width

3.5M

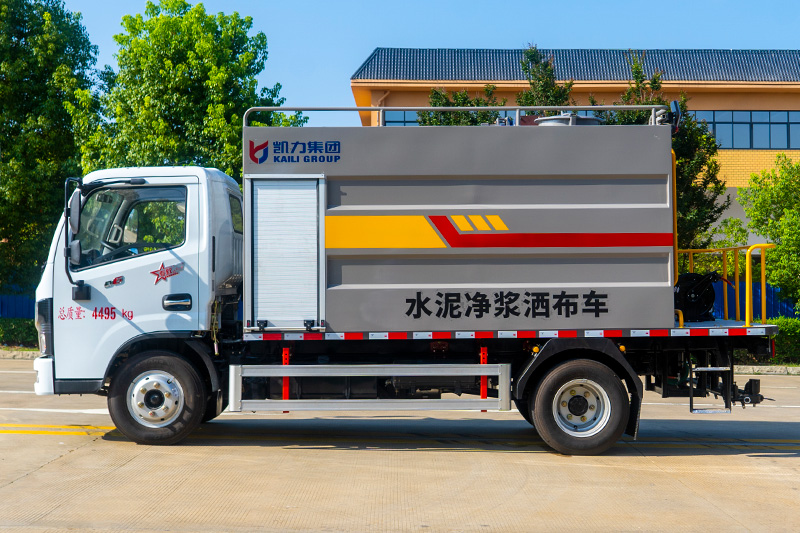

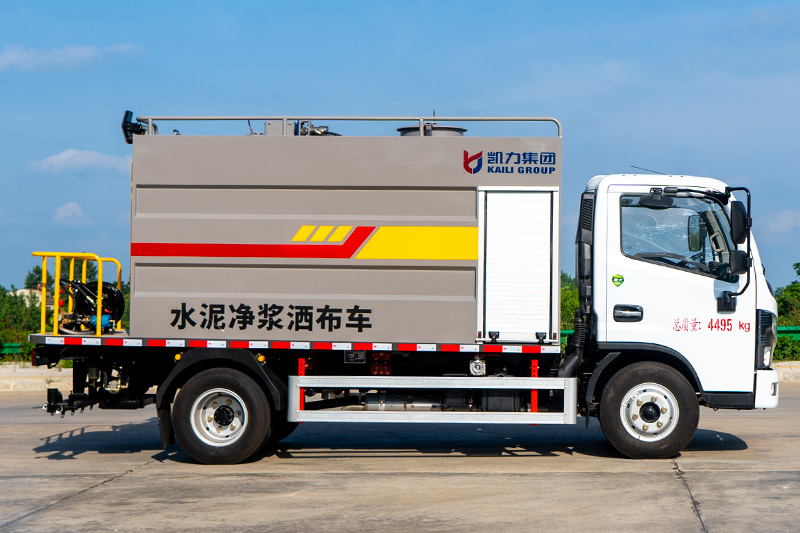

product name

Cement slurry spreader truck

product model

KLF5040TJSE6

gross mass （kg）

4495

Tank volume (m³)

Rated mass (kg)

///

outline dimension （mm）

5970X2000/2090X2810/2860

curb weight （kg）

///

Trunk dimensions (mm)

Rated passenger capacity

Total mass of semi-trailer (kg)

Maximum number of passengers in the cab (people)

2

Maximum saddle load capacity (kg)

Approach angle/Departure angle (°)

28/10

Front/rear suspension (mm)

1055/1607

Axle load (kg)

1600/2895,1800/2695

Maximum speed (kg/h)

110

remarks

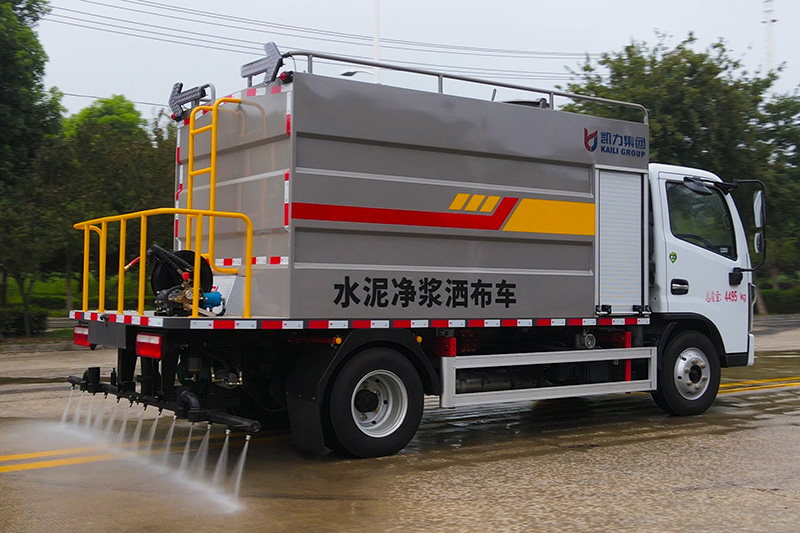

1. Axis distance only (mm): 3308. This vehicle is primarily used for road surface cement slurry spraying; its main components include a tank and a spraying device.

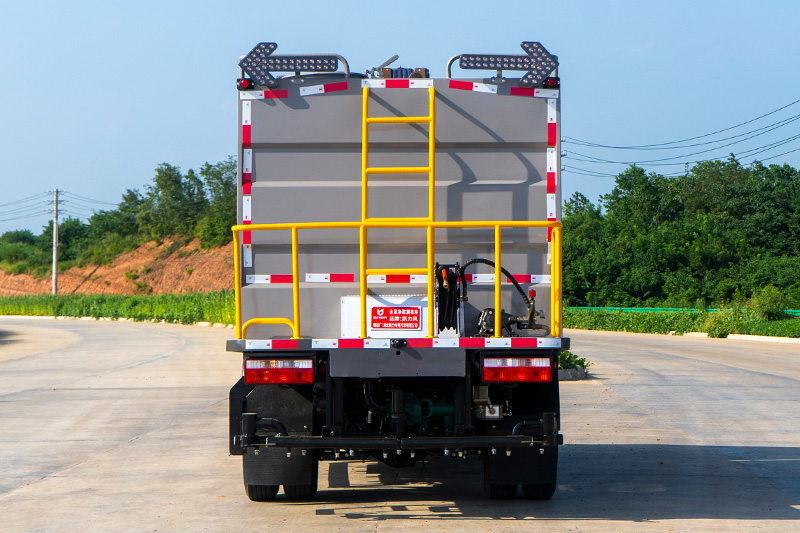

2. Both side and rear protections are made of Q235 steel. The side protection is welded to the sub-frame, while the rear protection is replaced by a dedicated device, with its lower edge positioned 360 mm above the ground.

3. ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd. The cab is optional and can be selected based on the chassis configuration.

Chassis technical parameters

Chassis model

EQ1045SJ3CDF

Chassis name

truck chassis

brand name

Dongfeng brand

manufacturing enterprise

Dongfeng Motor Co., Ltd.

number of axles

2

Number of tires

6

wheel base （mm）

3308

Emission basis standards

GB17691-2018 National VI Emission Standards

Fuel types

diesel oil

Rear wheelbase (mm)

1498,1516,1586,1458,1650,1800,1472
