| Item | Parameter | Remarks |
|---|---|---|
| Vehicle Model | KLF5161GSSE6 | |
| Wheelbase (mm) | 3950 | |
| Engine Model | YCY30170-60 | National VI Emission Standard, Diesel Engine |
| Engine Power (kW) | 125 | |
| Overall Dimensions (L×W×H, mm) | 7700,7900,7735,7560,7760,7595,7620,8200,8400,8235,8060,8260,8095,8120 × 2500,2550 × 3200,3000,3050 | |
| Curb Weight (kg) | 5675,6240 | |
| Max Gross Vehicle Weight (kg) | 16000 | |
| Working Speed | Engine speed: 1500 r/min | Stationary neutral operation |
| Box Body Effective Volume (m³) | 12 | |
| Tank Material | High-quality carbon steel from Wuhan Iron and Steel (4mm thickness) | |
| Front Spraying Width | 15–30 m | |

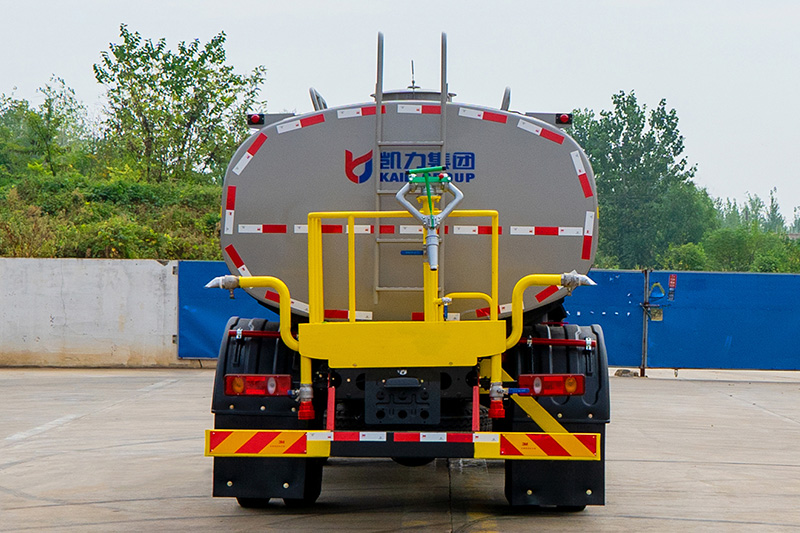

| Rear Platform Water Cannon | Dust suppression range: 30–35 m, 360° adjustable water cannon | |
| Special Water Pump | High-power water pump, vertical suction lift: 6 m | |
| Standard Configuration | Universal front spray, rear spray, side spray, S-shaped spray, water cannon, fire-fighting interface |
