| Item | Parameter | Remarks |
|---|---|---|

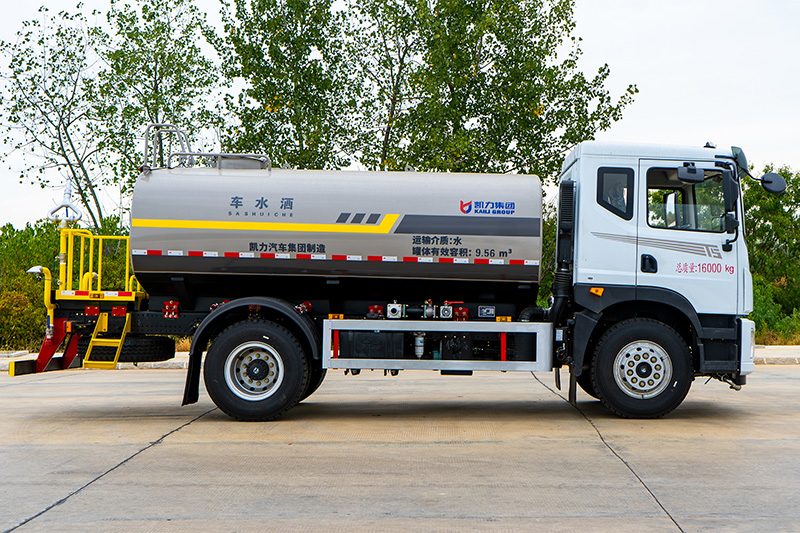

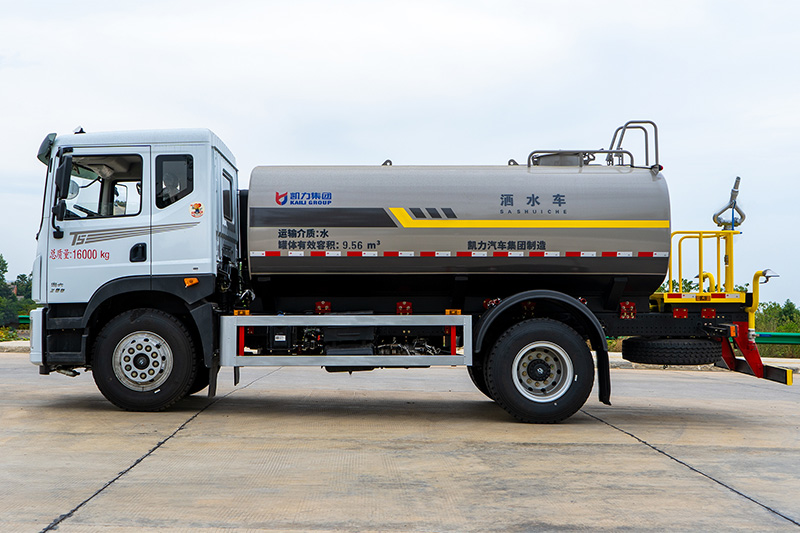

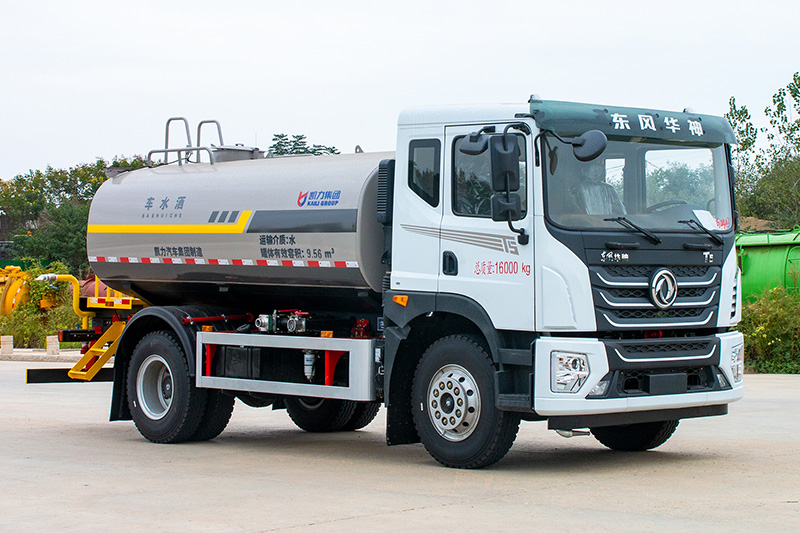

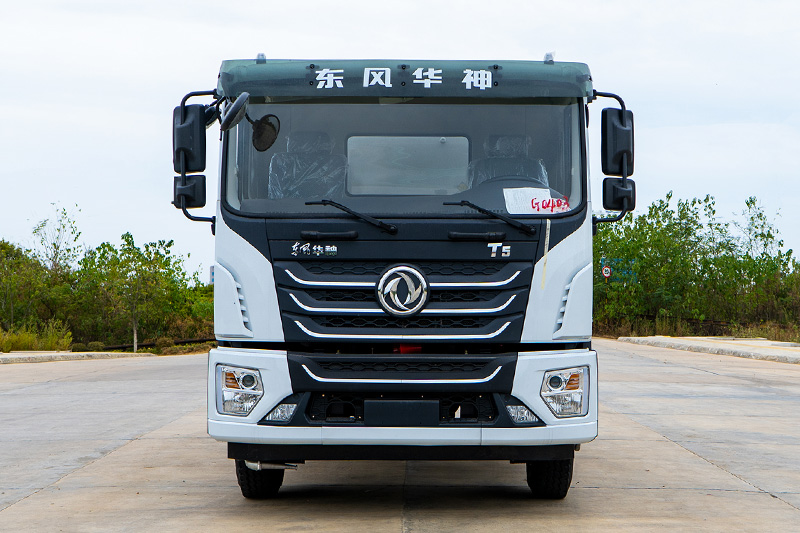

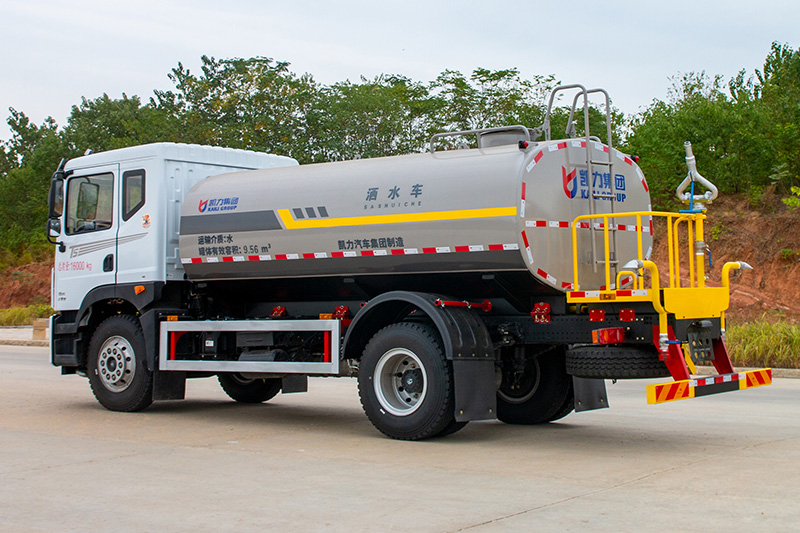

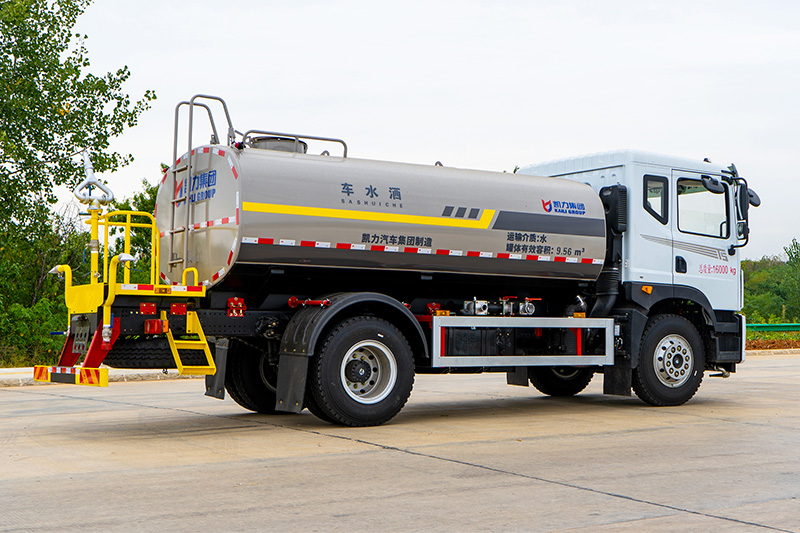

| Vehicle Model | KLF5161GSSE6 | |
| Wheelbase (mm) | 3950 | |
| Engine Model | YCY30165-60 / D30TCIF1 / YCS06200-68 | National VI Emission Standard, Diesel Engine |
| Engine Power (kW) | 121 / 125 / 147 | |
| Overall Dimensions (L×W×H, mm) | 7700,7900,7735,7560,7760,7595,7620,8200,8400,8235,8060,8260,8095,81202500,25503200,3000,3050 | |
| Curb Weight (kg) | 5675,6240 | |
| Max Gross Vehicle Weight (kg) | 16000 | |
| Working Speed | Engine speed: 1500 r/min | Stationary neutral operation |
| Box Body Effective Volume (m³) | 12 | |
| Tank Material | High-quality carbon steel from Wuhan Iron and Steel (4mm thickness) | |
| Front Spraying Width | 15–30 m | |

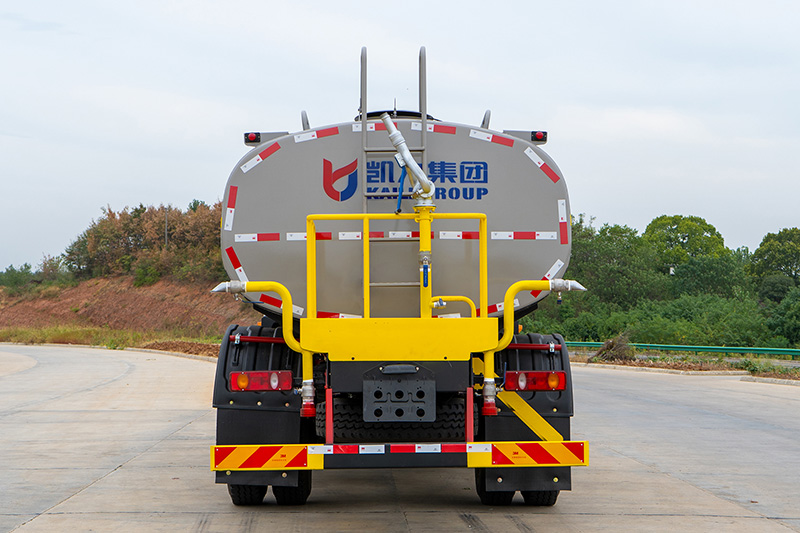

| Rear Platform Water Cannon | Dust suppression range: 30–35 m, 360° adjustable water cannon | |
| Special Water Pump | High-power water pump, vertical suction lift: 6 m | |
| Standard Configuration | Universal front spray, rear spray, side spray, S-shaped spray, water cannon, fire-fighting interface |
