| Item | Parameter | Remarks |
|---|---|---|

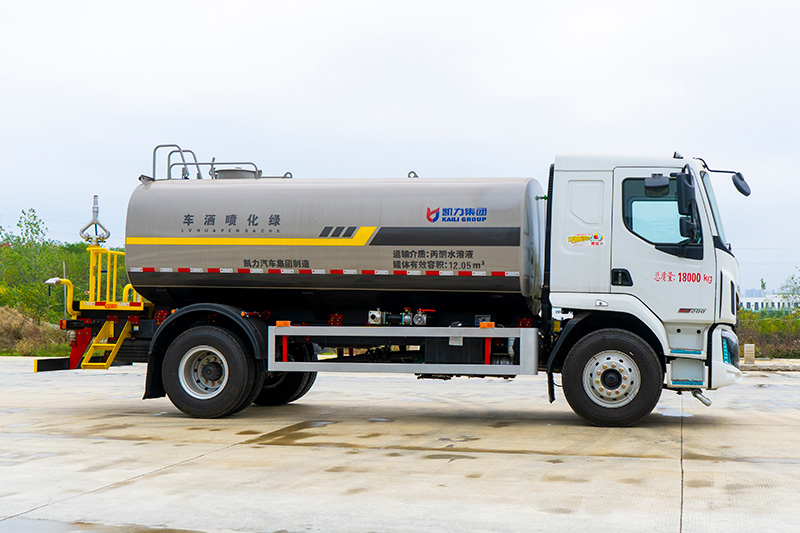

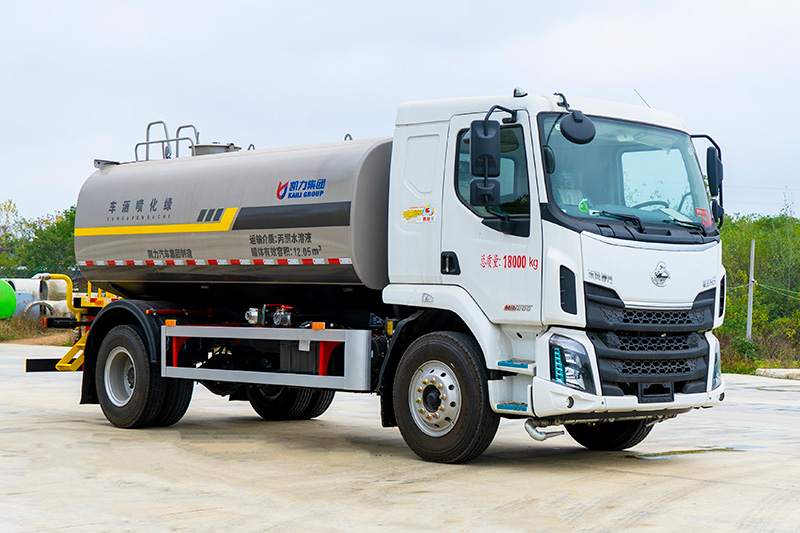

| Vehicle Model | KLF5180GPSL6 | |
| Wheelbase (mm) | 4500 | |
| Engine Model | YCS06200-60 / YCS06245-60 | National VI Emission Standard, Diesel Engine |
| Engine Power (kW) | 147 / 180 | |
| Overall Dimensions (L×W×H, mm) | 8285,8385,8685,8785,7965,8065,8885,9185,9285,8465,8565,8045,8145,8545,864525403300 | |
| Curb Weight (kg) | 6350 | |
| Max Gross Vehicle Weight (kg) | 18000 | |
| Working Speed | Engine speed: 1500 r/min | Stationary neutral operation |
| Box Body Effective Volume (m³) | 14 | |
| Tank Material | High-quality carbon steel from Wuhan Iron and Steel (4mm thickness) | |
| Front Spraying Width | 15–30 m | |

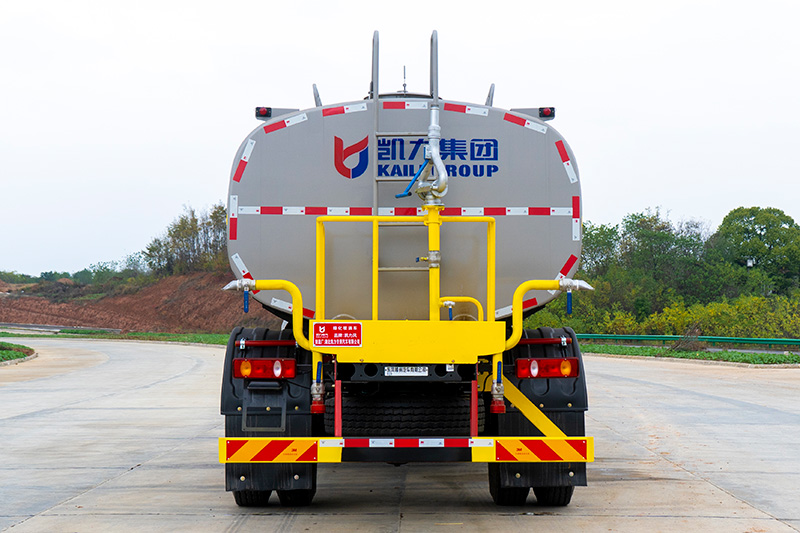

| Rear Platform Water Cannon | Dust suppression range: 30–35 m, 360° adjustable water cannon | |
| Special Water Pump | High-power water pump, vertical suction lift: 6 m | |
| Standard Configuration | Universal front spray, rear spray, side spray, S-shaped spray, water cannon, fire-fighting interface |
