Water Sprinkler Truck Types and Specifications: A Complete Comparison Guide

Water Sprinkler Truck Types and Specifications: A Complete Comparison Guide

How to choose the right model, tank capacity, and pump configuration for your application

Water sprinkler trucks are one of the most common special-purpose vehicles on roads worldwide, yet few buyers realize how much their specifications vary across different models. From compact 3,000L units serving narrow urban streets to heavy-duty 20,000L trucks tackling large-scale dust suppression at mining sites, the right choice depends on matching specifications to real operating conditions.

This guide compares four common water sprinkler truck types side by side - covering tank capacity, pump flow rate, spray range, chassis requirements, and typical applications - to help procurement teams make informed decisions.

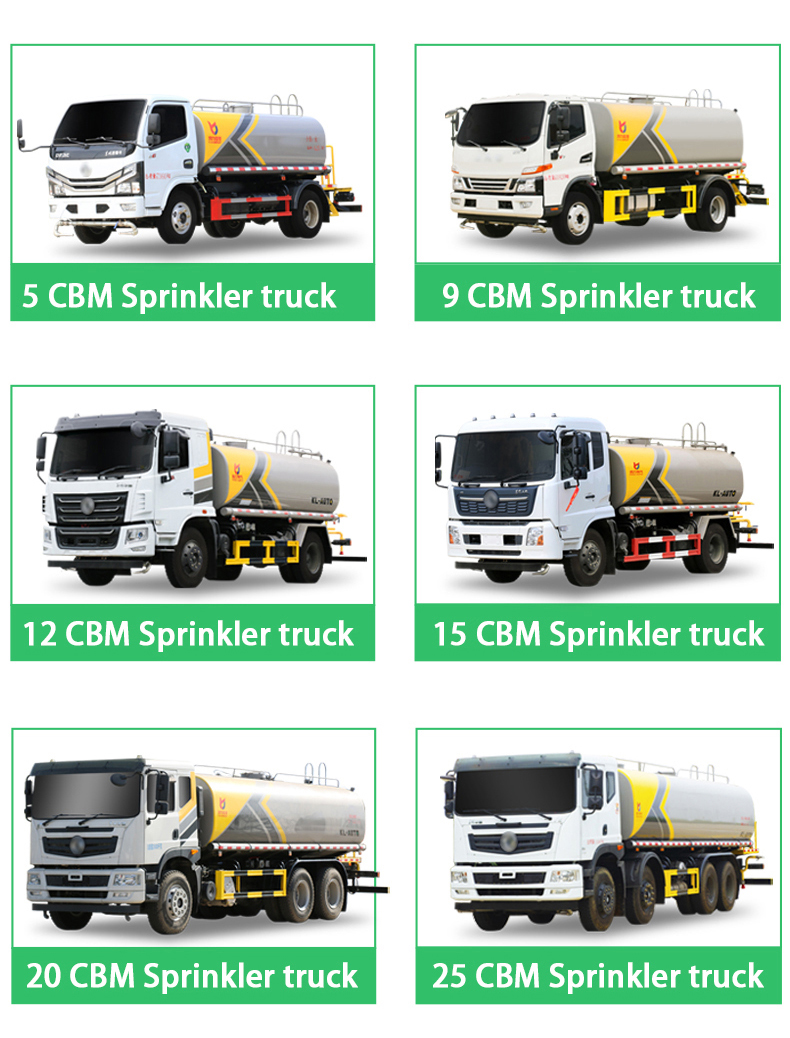

The Four Common Types of Water Sprinkler Trucks

Water sprinkler trucks are generally categorized by tank capacity, which directly determines their chassis size, pump configuration, and primary use case.

Light-duty (3,000L - 5,000L)

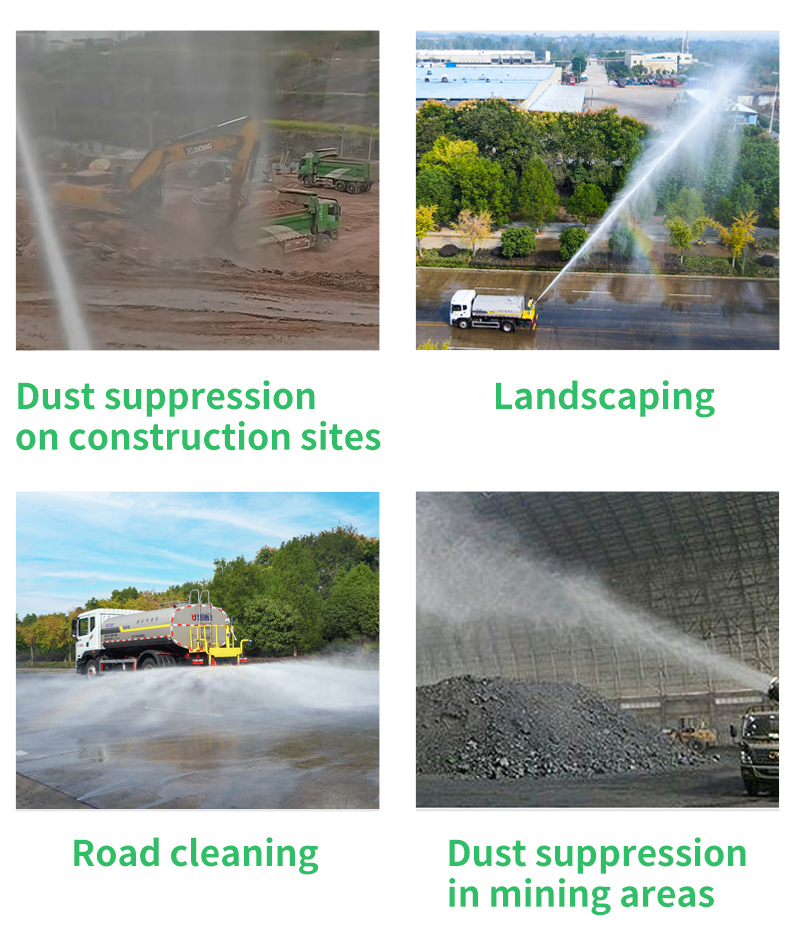

These compact units are built on light truck chassis with single-axle configuration. They are designed for urban environments where narrow streets, tight turns, and low weight limits restrict vehicle size. Typical applications include community road sprinkling, garden irrigation, and construction site dust control on small projects.

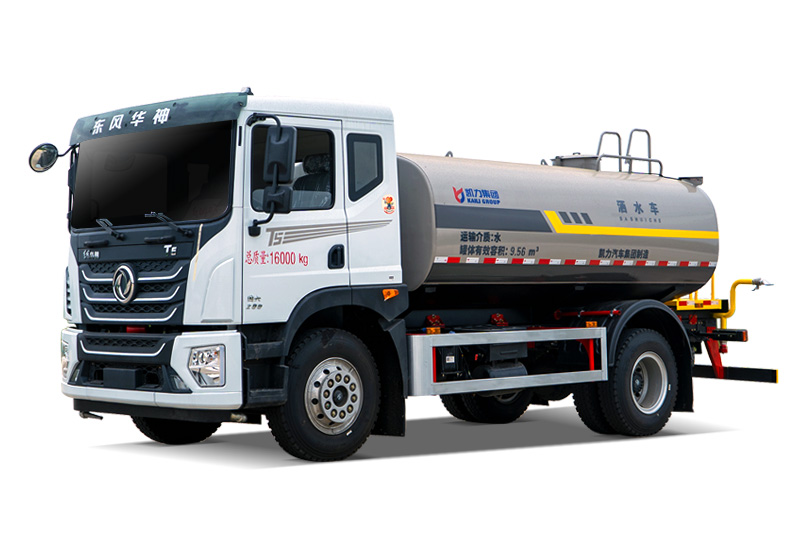

Medium-duty (8,000L - 12,000L)

The most widely used category, built on medium truck chassis with rear-axle drive. These offer the best balance between tank capacity and urban maneuverability. Municipal sanitation departments, landscaping contractors, and medium-scale construction sites are the primary users.

Heavy-duty (15,000L - 20,000L)

Built on heavy-duty truck chassis with multi-axle configuration (6x4 or 8x4), these units prioritize capacity over maneuverability. They are used for highway maintenance, large mining operations, major construction projects, and airport runway cleaning where long-range transport efficiency matters more than urban access.

Specialized Units (Customized)

Some applications require non-standard configurations: heated tanks for cold regions, stainless steel tanks for chemical-compatible spraying, high-pressure units for fire-fighting backup, or self-priming pump systems for water sourcing from rivers or ponds.

Key Specifications Comparison

Tank Capacity vs. Application

Pump and Spray System

Chassis Requirements

How to Match Specifications to Your Operating Conditions

Urban Municipal Use

For city sanitation departments serving densely populated areas, the medium-duty 8,000L-12,000L category is the sweet spot. Key considerations:

• Vehicle width under 2.5 meters - needed to navigate standard traffic lanes without obstructing other vehicles

• Noise level below 80 dB - required for early-morning and nighttime operation in residential zones

• Short wheelbase - enables U-turns on standard two-lane roads

• Forward-mounted spray nozzle - allows the driver to see and adjust coverage in real time

Construction and Mining

For heavy dust suppression on large sites, the heavy-duty category (15,000L+) is preferred. Key features to prioritize:

• High-capacity water pump (>= 800 L/min) - to cover large areas quickly with fewer refill trips

• Heavy-duty radiator and cooling system - essential for slow-speed operation in hot environments

• Protected underbelly components - prevent damage from uneven terrain and debris

• Remote control spray system - allows the operator to adjust spray from inside the cab

Cold Climate Operation

For regions with winter temperatures below freezing, standard water sprinkler trucks require modifications:

• Tank insulation - prevents water from freezing during operation and idle periods

• Heated pump housing - keeps the pump operational in sub-zero conditions

• Anti-freeze circulation system - allows the system to be drained or circulated with antifreeze solution

• Winter-grade seals and gaskets - remain flexible at low temperatures to prevent leaks

Cost Considerations

A common mistake is over-specifying: buying a heavy-duty 20,000L unit when 80% of operation is on narrow urban roads. The larger vehicle's reduced maneuverability and higher fuel cost often offset the advantage of fewer refill trips. Conversely, under-specifying for highway work results in excessive refill frequency and lost productivity.

Conclusion

Choosing the right water sprinkler truck is not about finding the largest tank or the most powerful pump. It is about matching specifications to your actual operating environment: road width, daily coverage area, water source distance, climate conditions, and local regulations. The medium-duty 8,000L-12,000L category covers the widest range of applications and is the recommended starting point for first-time buyers. For specialized operations - mining, cold climate, or high-speed highway work - consult with manufacturers who can customize chassis, pump, and spray configurations to match your site conditions.

Need help selecting the right water sprinkler truck for your fleet? Contact Kailion Group's engineering team with your daily coverage area, typical road width, and water source distance. We will recommend a tailored configuration with full GCC certification for Middle East operations.
