| Item | Parameter | Remarks |
|---|---|---|

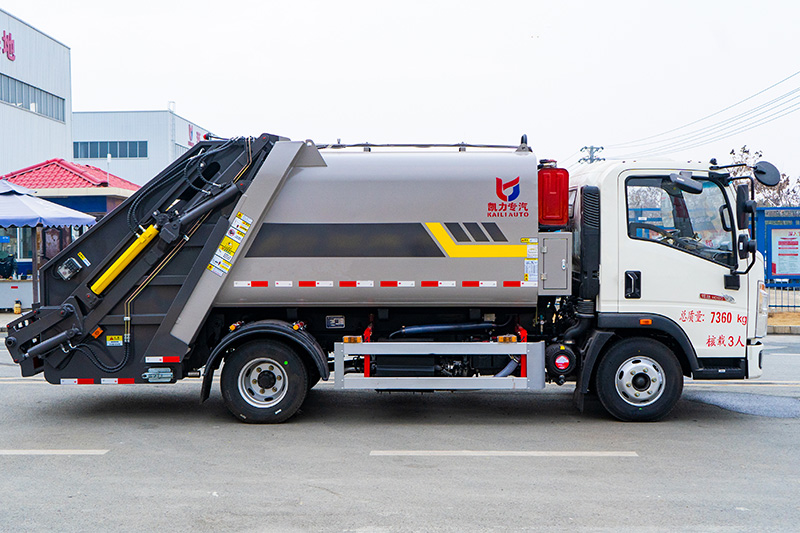

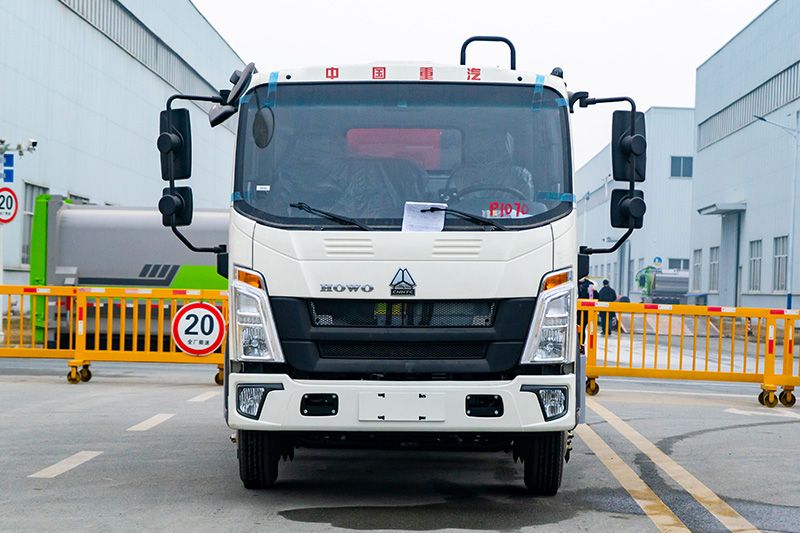

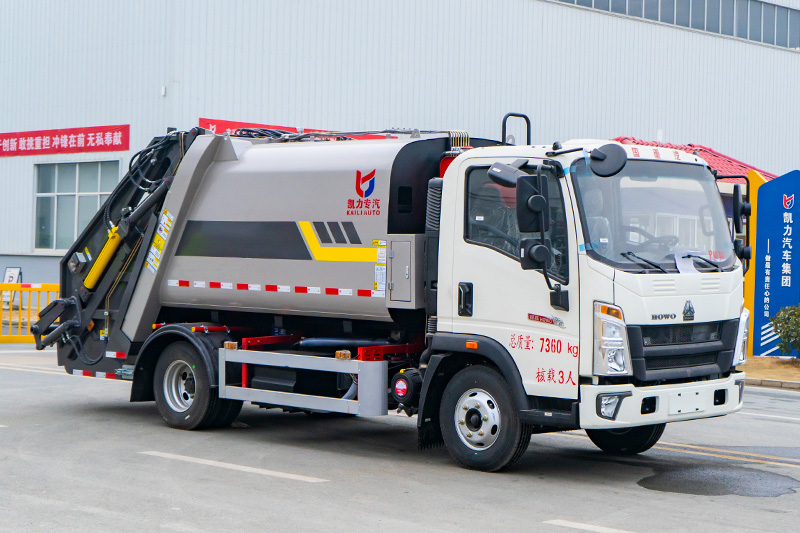

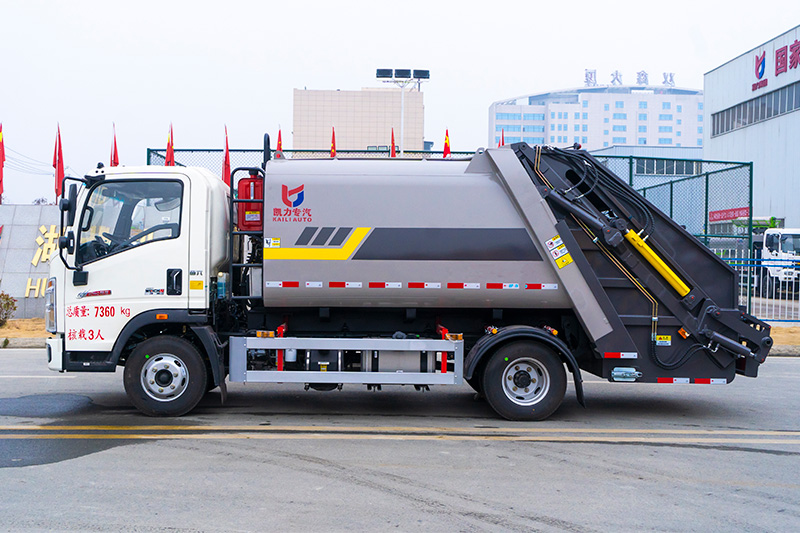

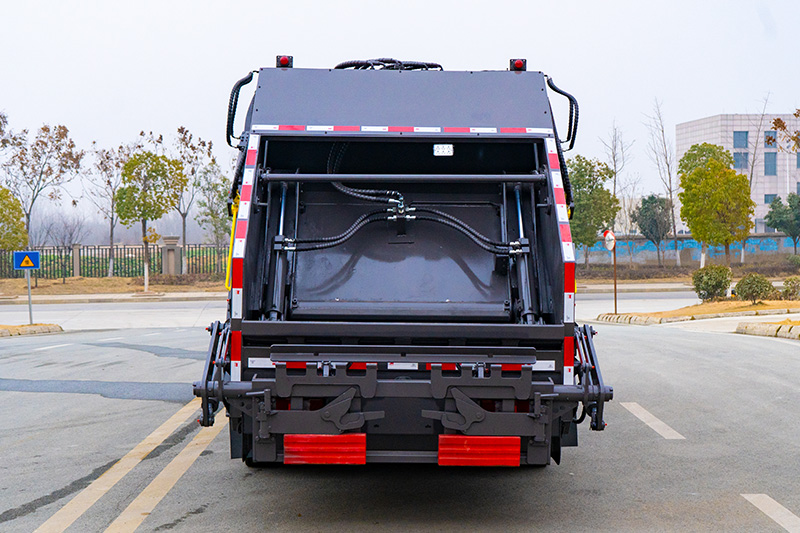

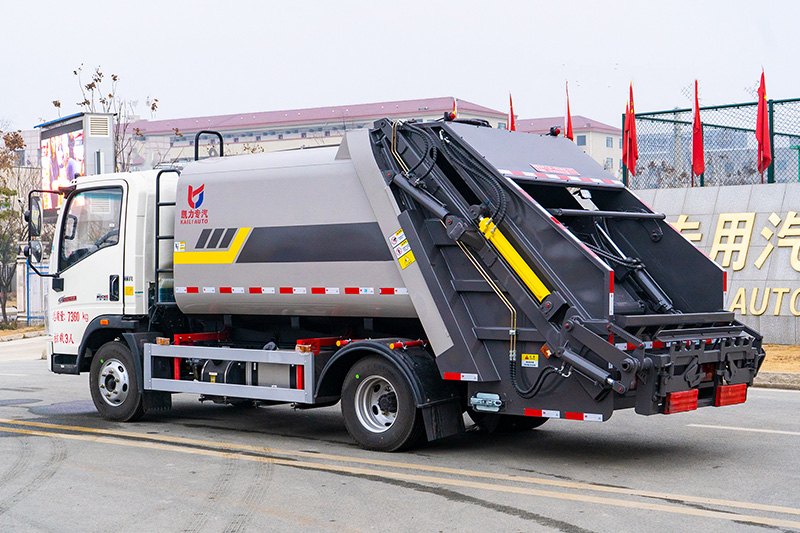

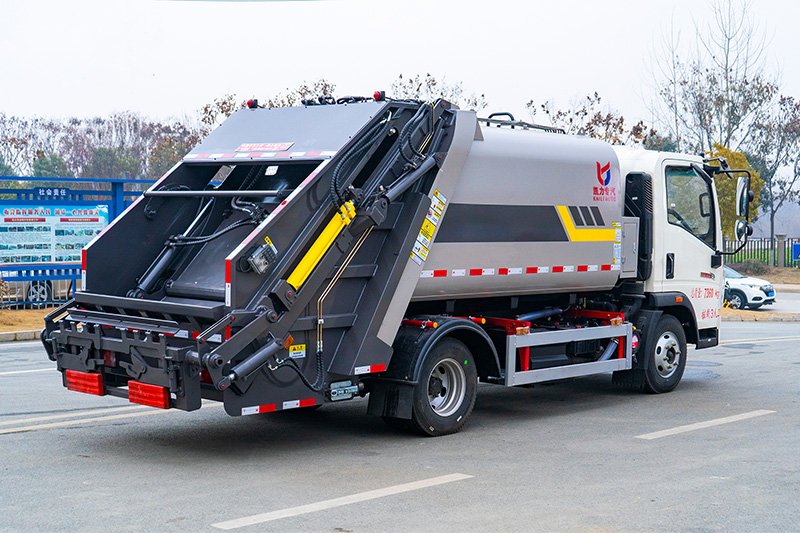

| Vehicle Model | KLF5071ZYSE6 | 4th generation new type compactor |
| Wheelbase (mm) | 3308 | — |
| Tire Specification | 7.00R16 steel-belted tire | — |
| Transmission | Wanliyang 5-speed gearbox | Different engine power options come with different transmissions |
| Wanliyang 6-speed gearbox | — | |
| Engine Model | Q23-136E60 (Quanchai, 136 hp) | China VI diesel engine |
| YCY24140-60 (Yuchai, 140 hp) | China VI diesel engine | |
| Engine Power (kW) | 100 / 103 | — |
| Overall Dimensions (L×W×H, mm) | 6605 / 6645 / 6715 / 6435 × 2070 / 2090 × 2560 / 2650 | Different rear structures result in different overall lengths |
| Gross Vehicle Weight (kg) | 7360 | — |
| Rated Payload (kg) | 1705, 1160, 1770, 1225, 1360, 1425 | Varies with configuration |
| Curb Weight (kg) | 5460, 6005, 5805 | Certified based on actual vehicle weight |
| Body Effective Volume (m³) | 7 | — |
| Operation Mode | Electric / Manual / Remote | All three modes are standard equipment |
| Loading Cycle Time | 12–25 s | — |
| Unloading Time | ≤25 s | — |
