| Item | Parameter | Remarks |
|---|---|---|

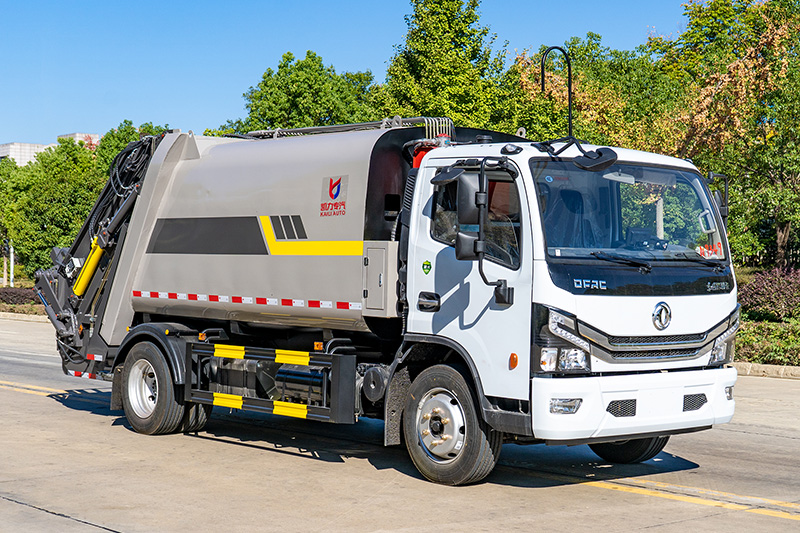

| Vehicle Model | KLF5120ZYSE6 | 4th generation new type compactor |
| Wheelbase (mm) | 3800 | — |
| Tire Specification | 245 vacuum tire / 8.25R20 steel-belted tire | — |
| Transmission | Wanliyang 6-speed gearbox | — |
| Fast 8-speed gearbox | Optional with Fast 8-speed transmission | |
| Engine Model | YCY30165-60 (Yuchai, 165 hp) | China VI diesel engine |
| Engine Power (kW) | 121 | — |
| Overall Dimensions (L×W×H, mm) | 7350 / 7537 / 7450 × 2280 / 2400 × 2780 / 3200 | Different rear structures result in different overall lengths |
| Gross Vehicle Weight (kg) | 11995 | — |
| Rated Payload (kg) | 5300, 4976, 5365, 5041, 4660, 4725 | Varies with configuration |
| Curb Weight (kg) | 6500, 6824, 7140 | Certified based on actual vehicle weight |
| Body Effective Volume (m³) | 10 | — |
| Operation Mode | Electric / Manual / Remote | All three modes are standard equipment |
| Loading Cycle Time | 12–25 s | — |
| Unloading Time | ≤25 s | — |
