| Item | Parameter | Remarks |
|---|---|---|

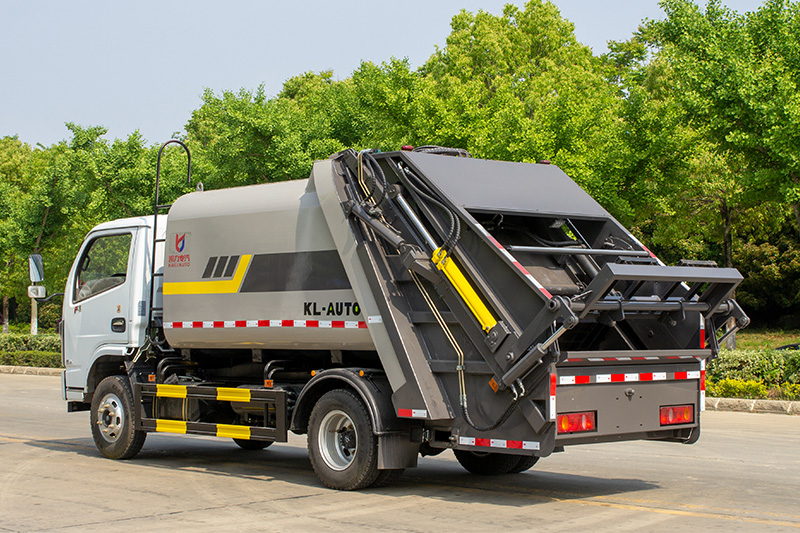

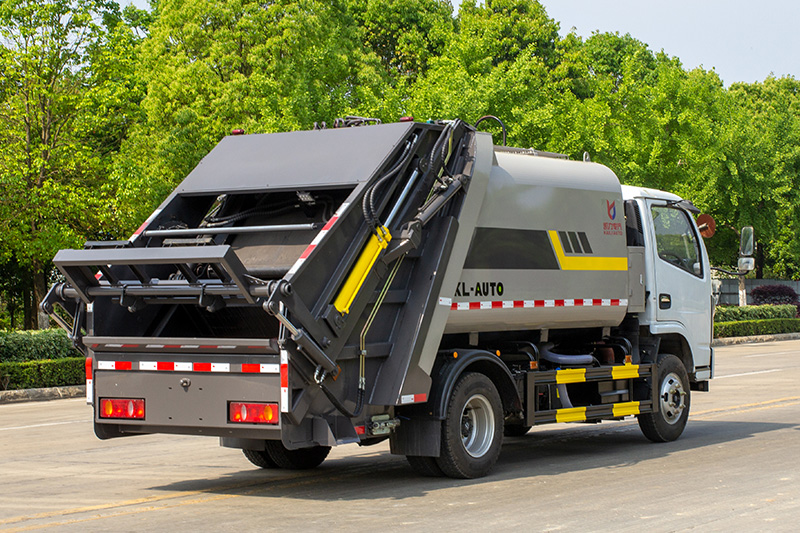

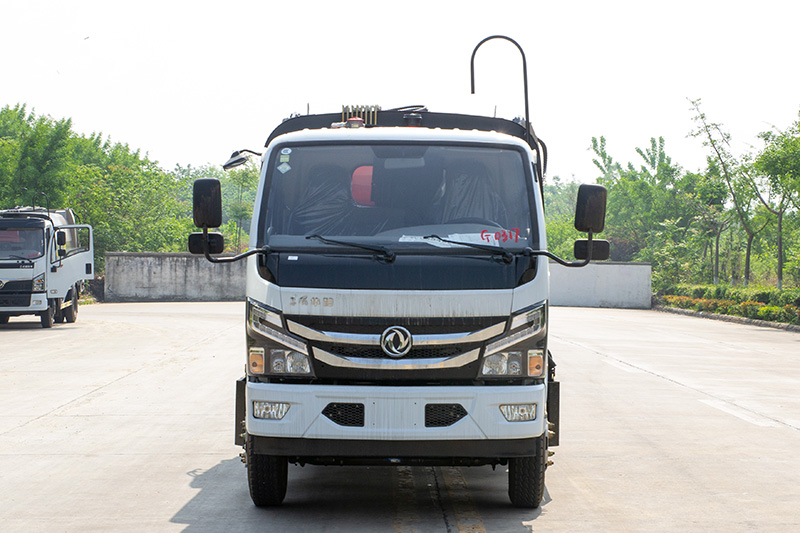

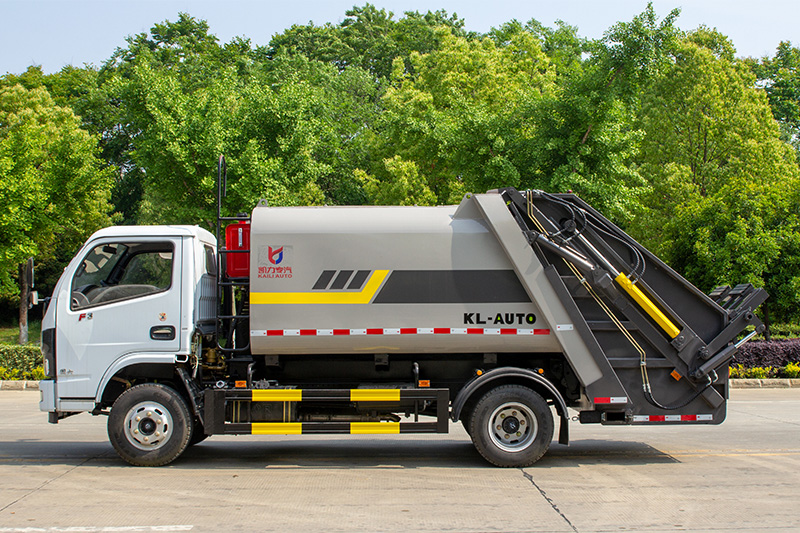

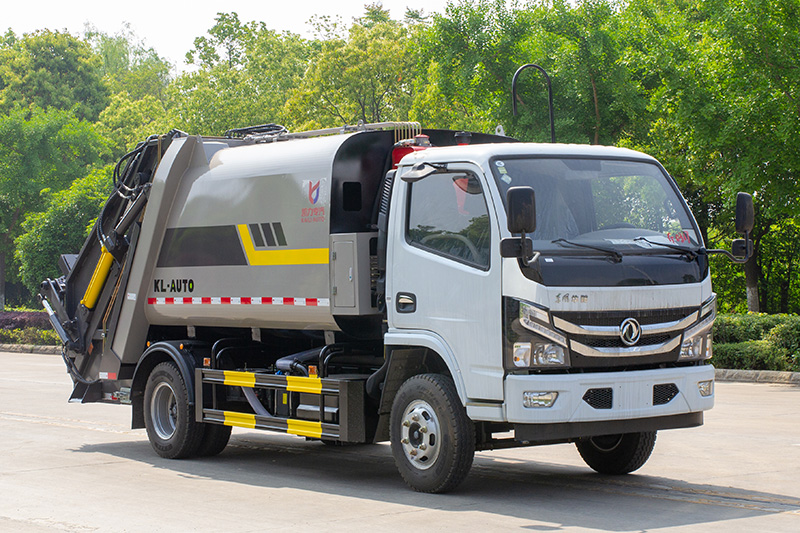

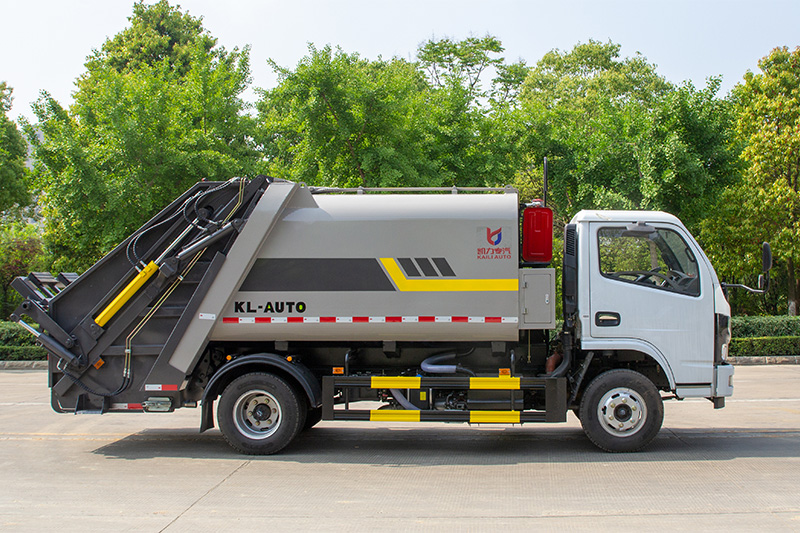

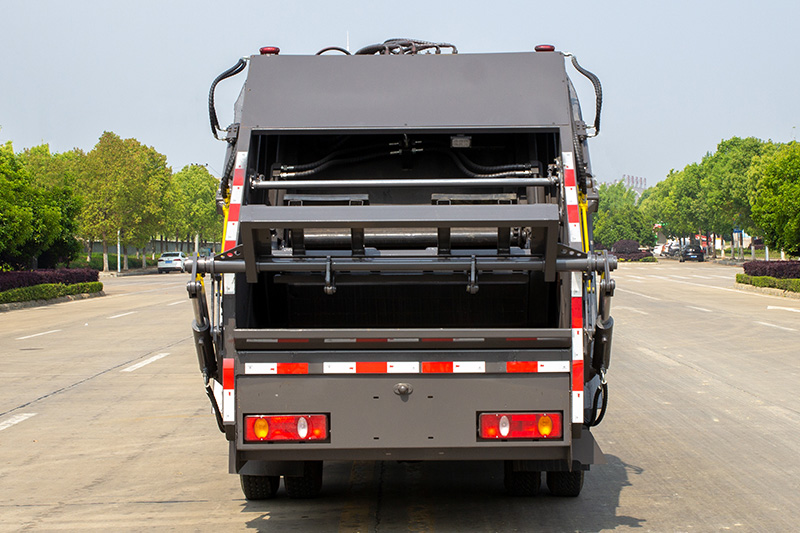

| Vehicle Model | KLF5072ZYSE6 | 4th Generation New Compactor Garbage Truck |
| Wheelbase (mm) | 3308 | |
| Tire Specification | 7.00 Steel Wire Tire | |
| Transmission | Wanliyang 5-speed Transmission | |
| Engine Model | D20TCIF11 | National VI Emission Standard, Diesel Engine |
| Engine Power (kW) | 93 | |
| Overall Dimensions (L×W×H, mm) | 6860,6740,6565,65202060,20802900 | Four rear structure options; overall length varies with different structures |
| Max Gross Vehicle Weight (kg) | 7360 | |
| Rated Payload (kg) | 1515, 1580, 1365, 1430 | |
| Curb Weight (kg) | 5650, 5800 | Certified according to the actual vehicle weight |
| Box Body Effective Volume (m³) | 7 | |
| Operation Mode | Electric Control / Manual / Remote Control | Three operation modes as standard equipment |
| Single Feed Cycle Time | 12–25s | |
| Unloading Time | ≤25s |
