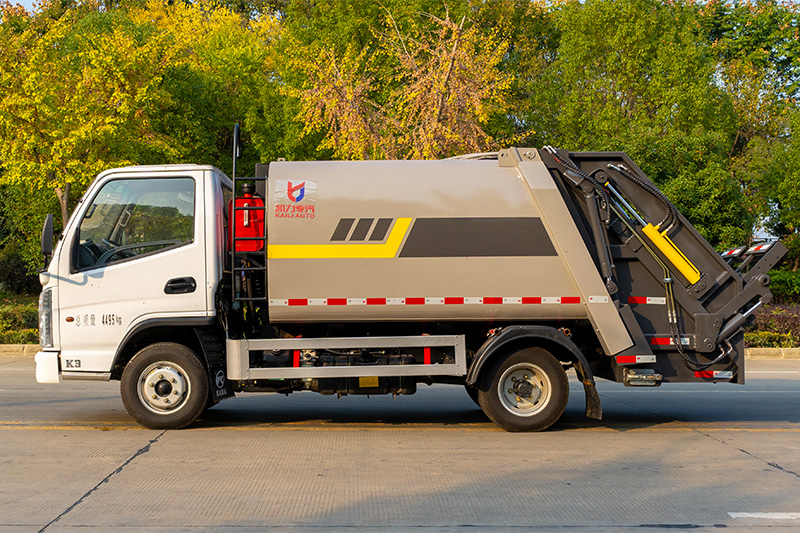

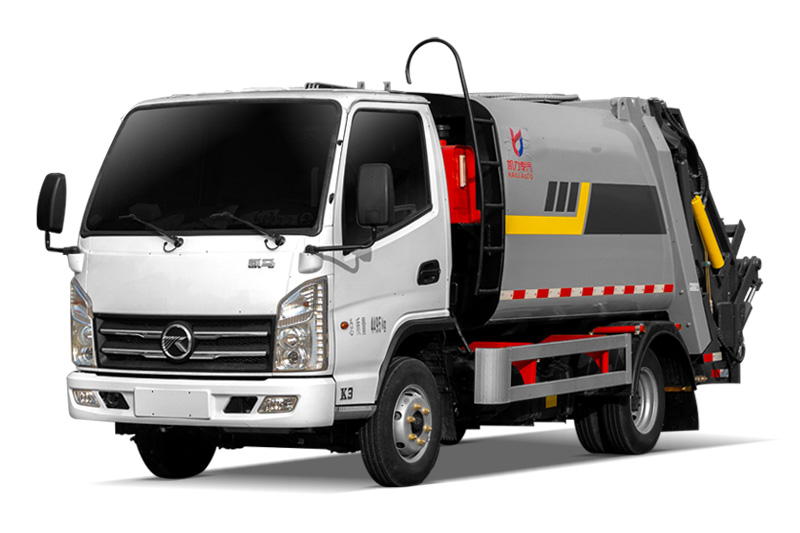

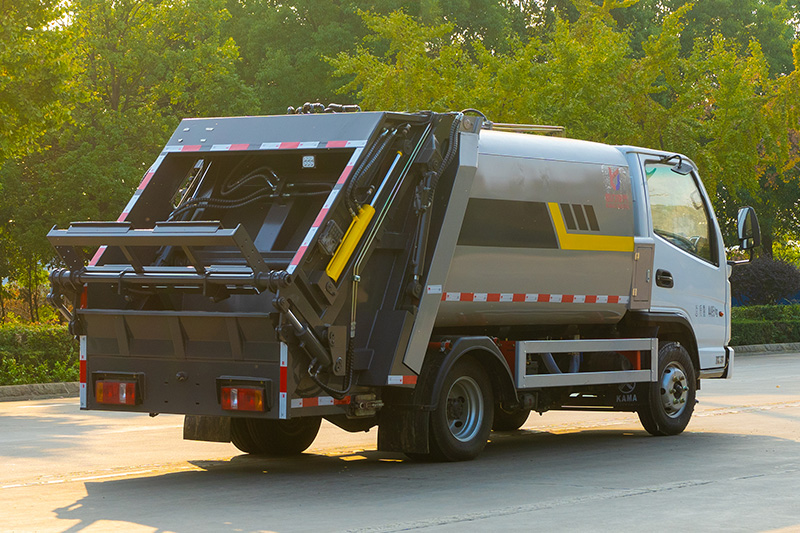

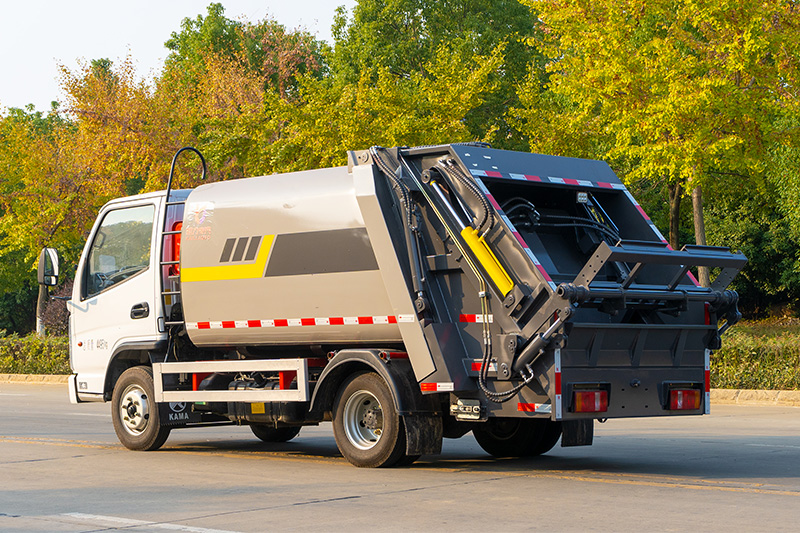

Kaima K3 23-Model Compressed Garbage Truck 5m³

Vehicle Model

KLF5041ZYSK6

4th Generation New Compressed Type

Wheelbase (mm)

2800

Tire Specification

6.00 Steel Radial Tire

Gearbox

6-Speed Gearbox

Different engine HP, different gearbox

Engine Model

Yunnei 126HP (D20TCIF1)

National VI Emission, Diesel Engine

Engine Power (kW)

93KW

Overall Dimensions【L×W×H (mm)】

5995*1920*2100

Four tail structures, different lengths

Max Total Mass (kg)

4495

Rated Load Mass (kg)

500

Curb Weight (kg)

3865

Based on actual vehicle weight

Effective Box Volume (m³)

5

Operation Mode

Electric/Manual/Remote

Three modes all standard

Single Feed Cycle Time

12—25S

Unloading Time

≤25S
