| Item | Parameter | Remarks |
|---|---|---|

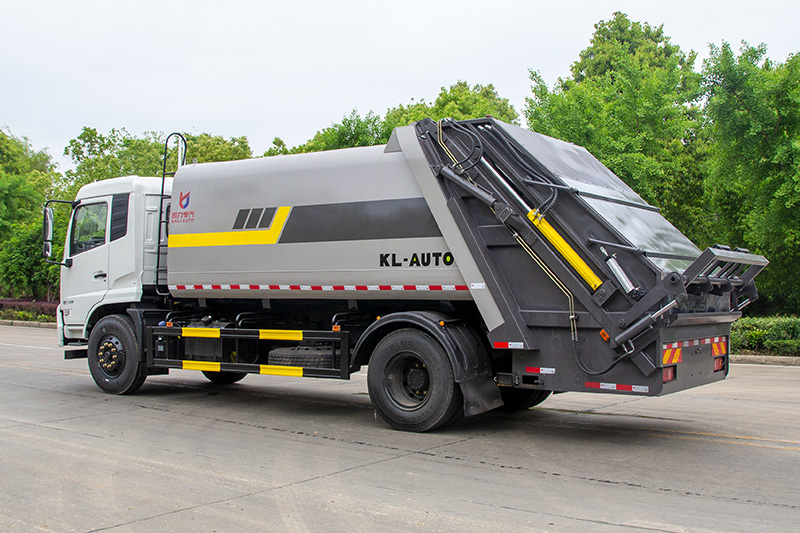

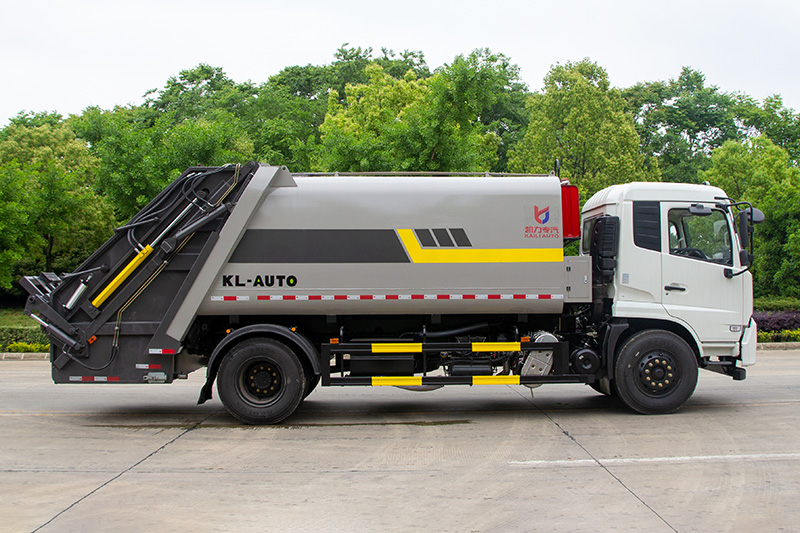

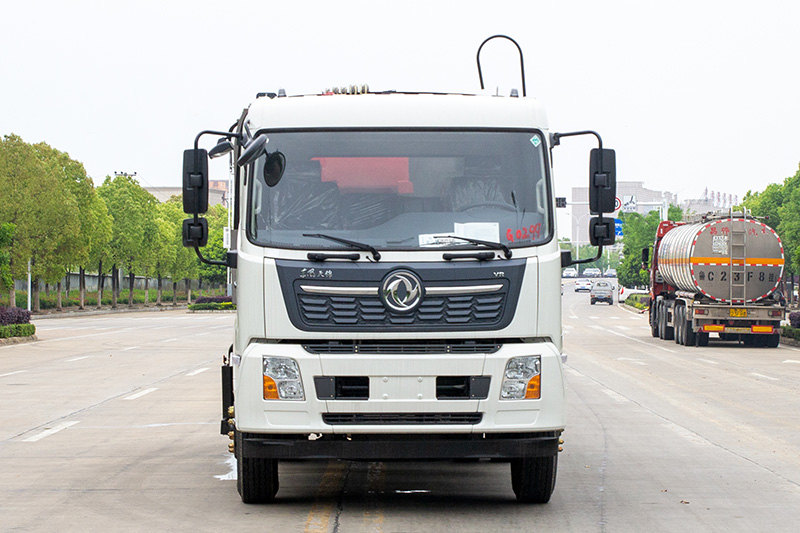

| Vehicle Model | KLF5181ZYSD6 | 4th Generation New Compactor Garbage Truck |
| Wheelbase (mm) | 4700 | |
| Tire Specification | 10.00 Steel Wire Tire | |
| Transmission | Fast 8-speed Transmission | |
| Engine Model | B6.2NS6B230 (Cummins 230) | National VI Emission Standard, Diesel Engine |
| Engine Power (kW) | 169 | |
| Overall Dimensions (L×W×H, mm) | 90302500/25303200/3400 | Four rear structure options; overall vehicle length varies by structure |
| Max Gross Vehicle Weight (kg) | 18000 | |
| Rated Payload (kg) | 7620,7555,7315,7250,6600,6535 | |
| Curb Weight (kg) | 10250,10555,11270 | Certified based on the actual vehicle weight |
| Box Body Effective Volume (m³) | 15 | |
| Operation Mode | Electric / Manual / Remote | Three operation modes as standard configuration |
| Single Feed Cycle Time | 12–25s | |
| Unloading Time | ≤25s |
