| Item | Parameter | Remarks |
|---|---|---|

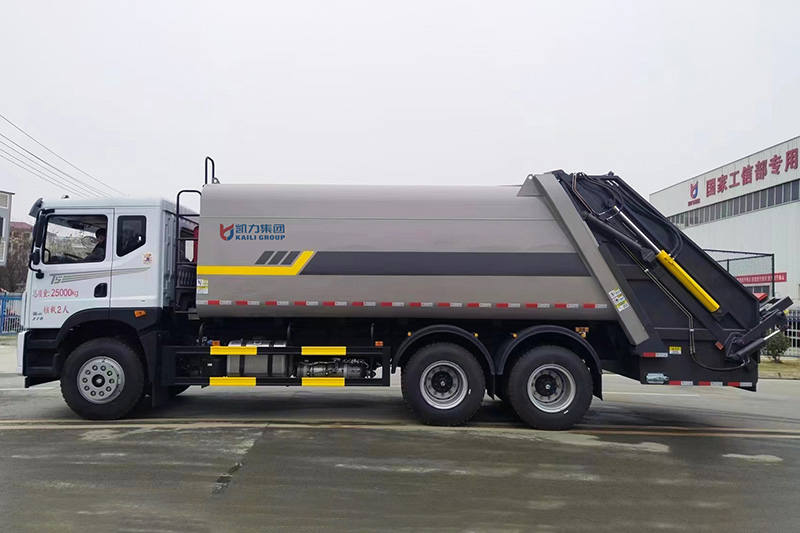

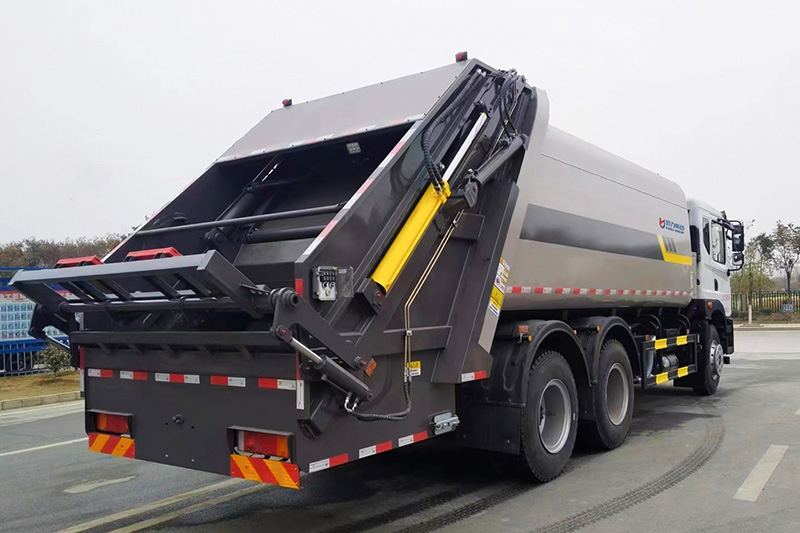

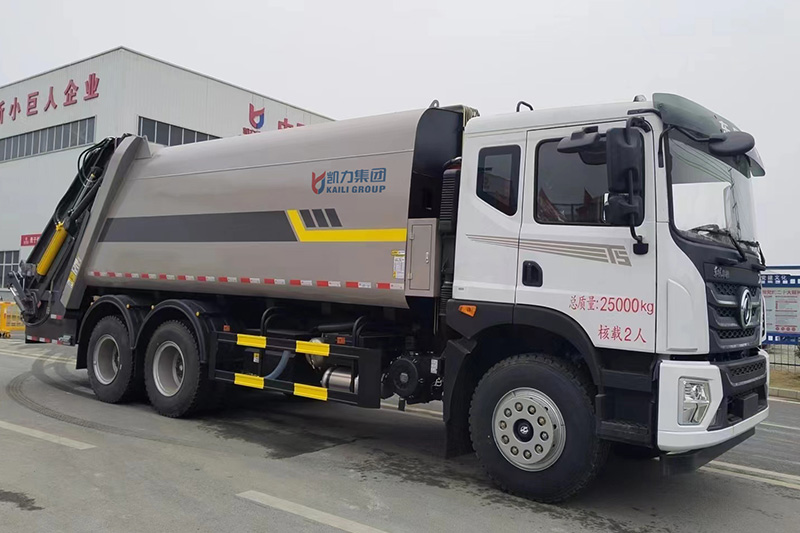

| Vehicle Model | KLF5250ZYSE6 | Compactor Garbage Truck |
| Wheelbase (mm) | 4350+1350 | |
| Tire Specification | 11.00 Steel Wire Tire | |
| Transmission | Fast 8-speed Transmission | |
| Engine Model | B6.2NS6B230 (Cummins 230), B6.2NS6B260 (Cummins 260), YCS06245-60A (Yuchai 245), YCS06270-60 (Yuchai 270) | National VI Emission Standard, Diesel Engine |
| Engine Power (kW) | 169 / 191 / 180 / 199 | |
| Overall Dimensions (L×W×H, mm) | 9700,9800,9860,9900,9950,9960,9985,10000,10110,10145,10150,10185 * 2550 * 3520 | |
| Max Gross Vehicle Weight (kg) | 25000 | |
| Rated Payload (kg) | 10140, 10075, 10570, 10505 | |
| Curb Weight (kg) | 14730, 14300 | |
| Box Body Effective Volume (m³) | 20 | |
| Operation Mode | Electric / Manual / Remote | |
| Single Feed Cycle Time | 12–25s | |
| Unloading Time | ≤25s |
