| Item | Parameter | Remarks |
|---|---|---|

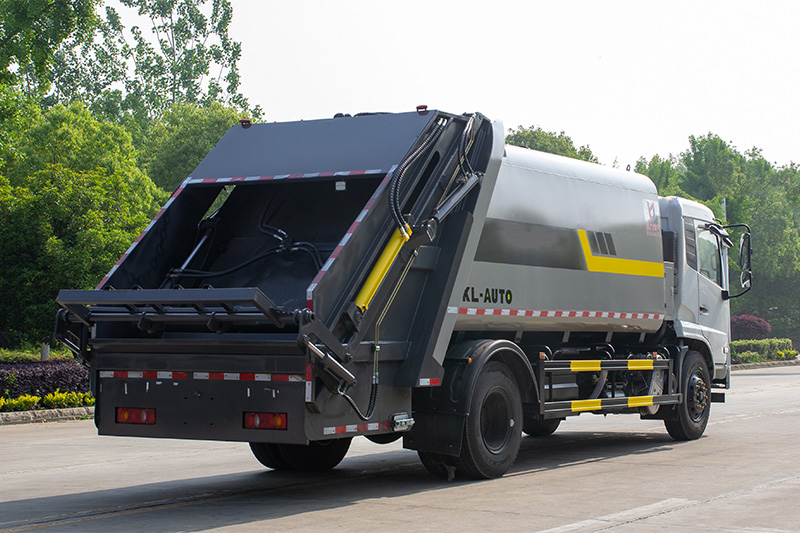

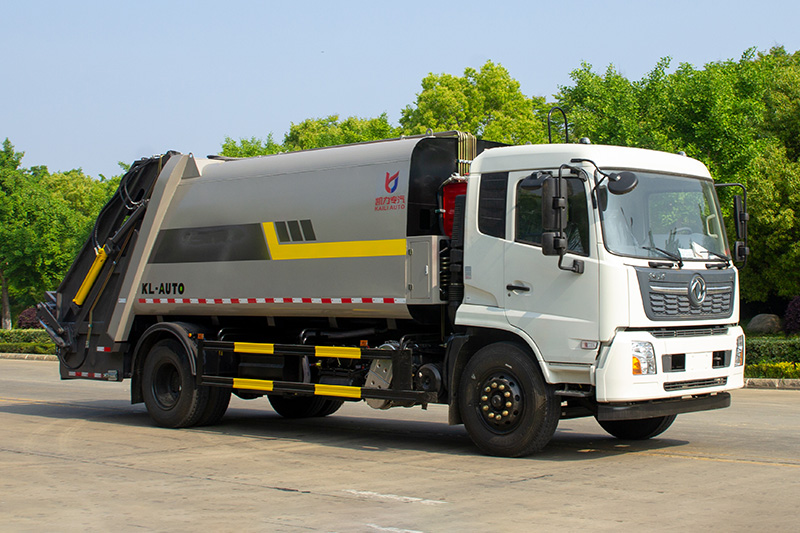

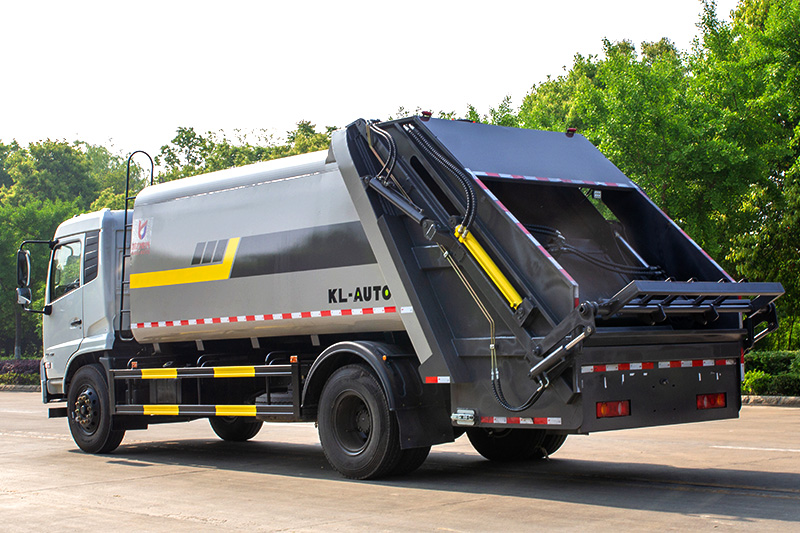

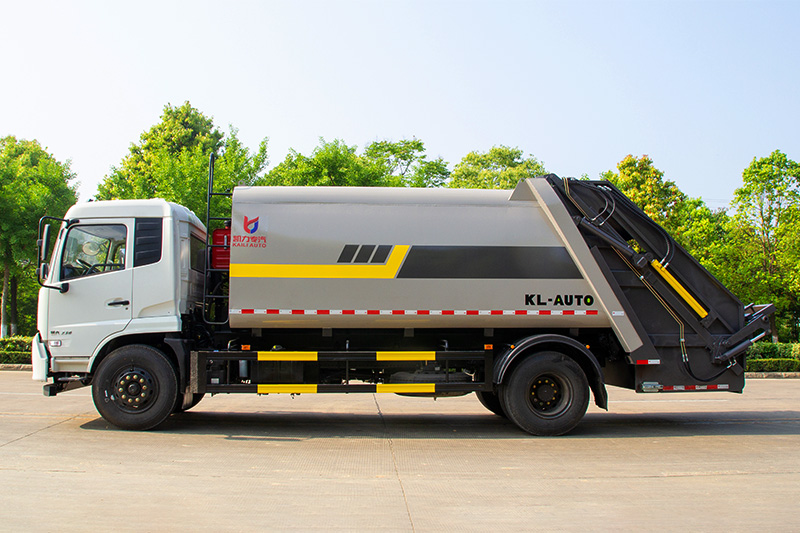

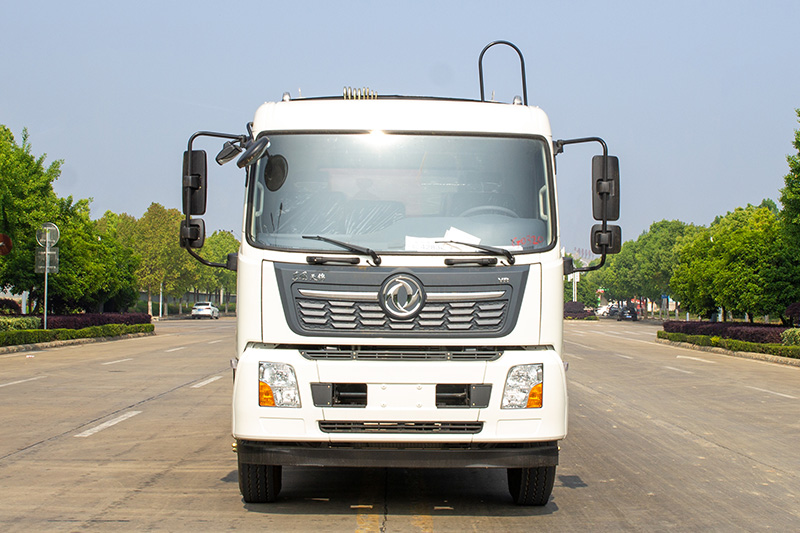

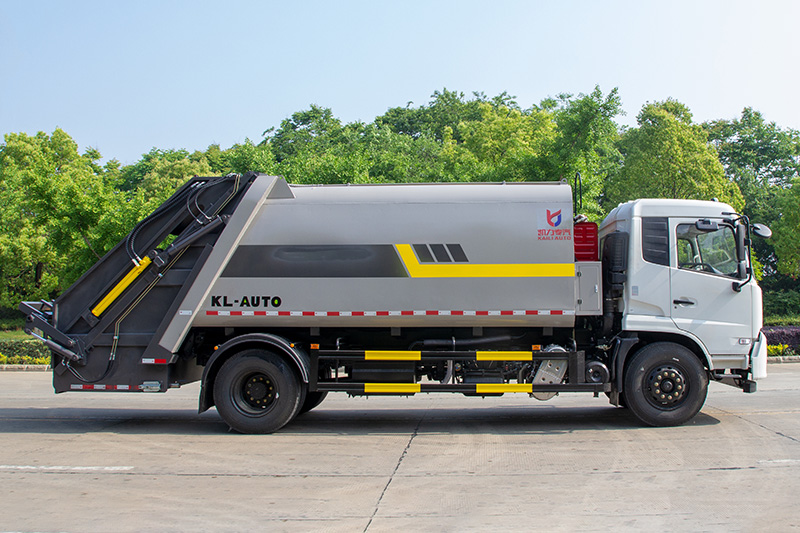

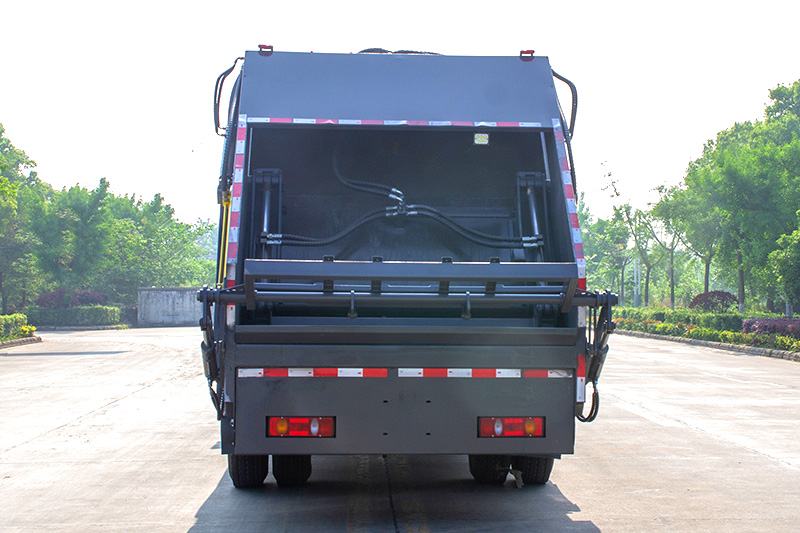

| Vehicle Model | KLF5160ZYSD6 | 4th Generation New Compression Type |
| Wheelbase (mm) | 3950 | - |
| Tire Specification | 9.00 Steel Cord Tires / 275 Tubeless Tires | - |
| Transmission | Fast 8-speed Gearbox | - |
| Engine Model | DDi47E210-60 (Longqing 210HP)D4.0NS6B195 (Cummins 195HP) | China VI Emission Standard, Diesel Engine |
| Engine Power (kW) | 154/143 | - |
| Overall Dimensions【Length × Width × Height (mm)】 | 8210, 8175, 8025, 7925, 8275, 8160, 8045, 7945*2500, 2550*3200, 3250, 3300 | 4 rear structures available, different structures result in different overall vehicle lengths |
| Maximum Gross Vehicle Weight (kg) | 16200 | - |
| Rated Load Mass (kg) | 6805, 6870, 6355, 6420 | - |
| Curb Weight (kg) | 9200, 9650 | Certified based on actual vehicle weight |
| Effective Compartment Volume (m³) | 12.5 | - |
| Operation Method | Electric Control / Manual / Remote Control | All 3 operation modes are standard configuration |
| Single Feeding Cycle Time | 12—25S | - |
| Unloading Time | ≤25S | - |
